How to get Jupyter Python Notebook on GCP(Google Cloud Platform)



This section describes how to launch and connect to Jupyter Python Notebook in a Google Compute environment using the available Cloud Launcher offering.

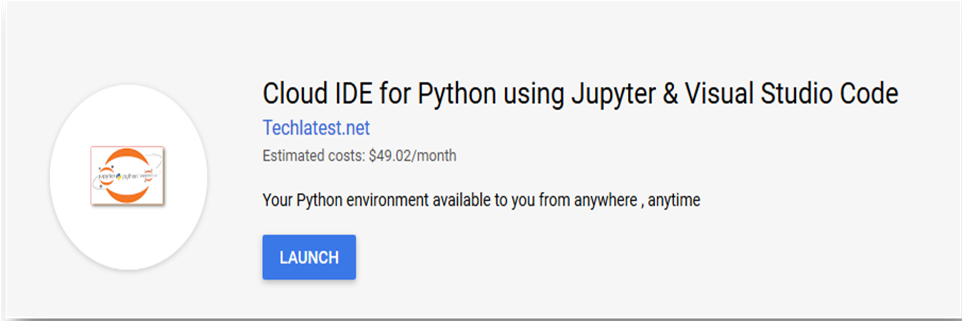

  1. Open Jupyter Python Notebook listing on GCP Marketplace
  2. Click Launch.
  3. /img/gcp/jupyter-python-notebook/marketplace.png


    • Select a zone where you want to launch the VM(such as us-east1-)
    • Optionally change the number of cores and amount of memory. ( This defaults to 2 vCPUs and 7.5 GB ram)
    • Optionally change the boot disk type and size. (This defaults to 'Standard Persistent Disk' and 10 GB respectively)
    • Optionally change the network name and subnetwork names. Be sure that whichever network you specify has ports 22 (for ssh), 3389 (for RDP) and 80 (for HTTP) exposed.
    • Click Deploy when you are done.

      Jupyter Python Notebook will begin deploying.

    /img/gcp/jupyter-python-notebook/deployment-page.png


  4. A summary page displays when the compute engine is successfully deployed. Click on the Instance link to to go to the instance page .

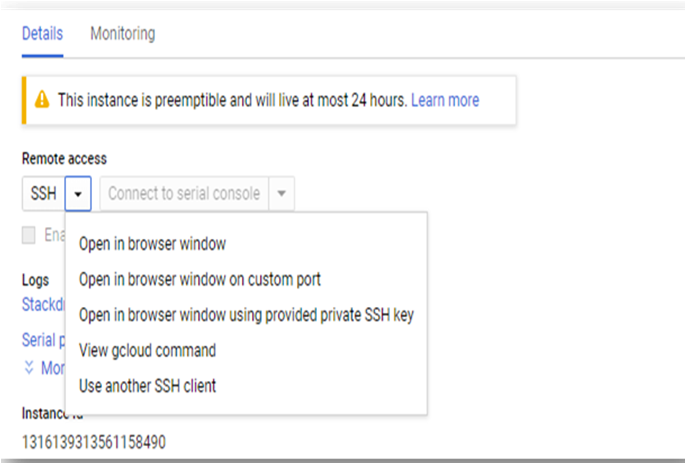

  5. On the instance page, click on the "SSH" button, select "Open in browser window".

  6. /img/gcp/jupyter-python-notebook/ssh-option.png


  7. This will open SSH window in a browser.
  8. Run below command to set the password for "ubuntu" user

  9. /img/gcp/jupyter-python-notebook/ssh-passwd.png

  10. Now the password for ubuntu user is set, you can connect to the VM's desktop environment from any local windows machine using RDP protocol.

  11. To connect using RDP, first note the external IP of the VM from VM details page as highlighted below

  12. /img/gcp/jupyter-python-notebook/external-ip.png

  13. Then From you local windows machine, goto "start" menu , in the search box type and select "Remote desktop connection"

  14. In the "Remote Desktop connection" wizard, copy the external ip and click connect

  15. /img/gcp/jupyter-python-notebook/rdp.png

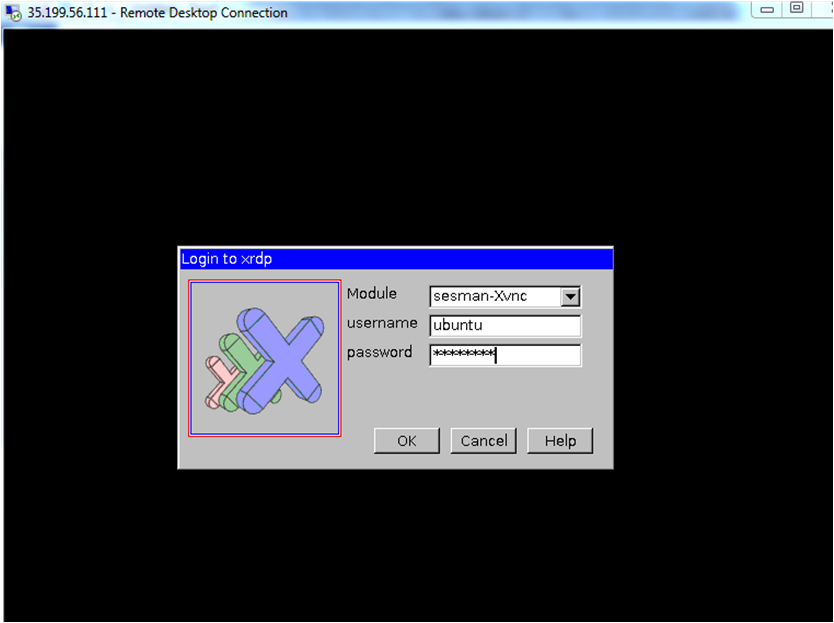

  16. This will connect you to the VM's desktop environment. Provide "ubuntu" as the userid and the password set in step 6 to authenticate. Click OK

  17. /img/gcp/jupyter-python-notebook/rdp-login.png

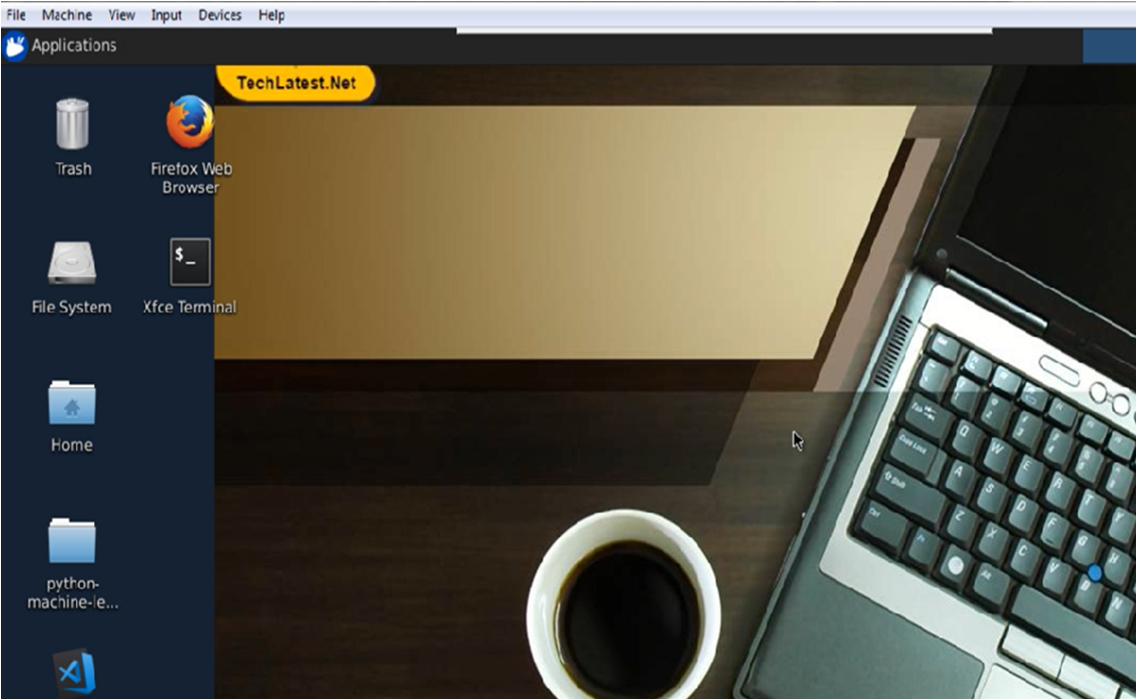

  18. Now you are connected to the out of box Jupyter Python Notebook environment.

  19. /img/gcp/jupyter-python-notebook/rdp-desktop.png

  • You can use the remote desktop you connected in above step for using the VM, however, more convenient and better method is to use the Jupyter/Ipython notebook which comes with the VM .
    The Notebook is available on the same public IP you used for remote desktop and accessible via any browser. Just open the browser and type the public IP address and you will get below screen for login . Use “ubuntu” as username and the password you set in step 8 to login.
    Note : Make sure you use “http” and not “https” in the url

  • /img/gcp/gcp_pythonmachinelearning_notebook.png
