How to get Jupyter Python Notebook on Azure

This section describes how to launch and connect to Jupyter Python Notebook in Azure.

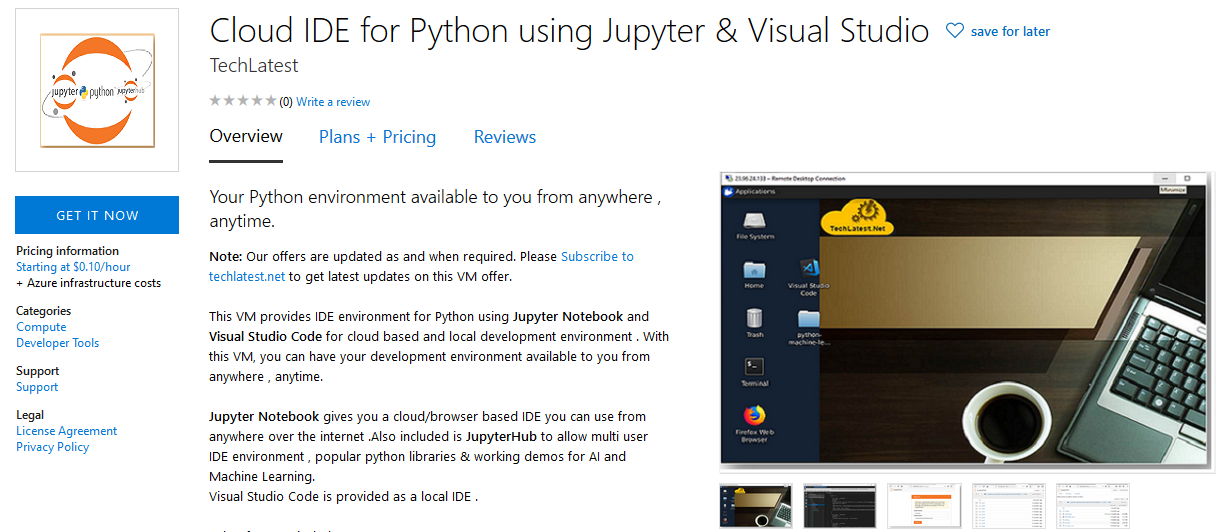

  1. Open Jupyter Python Notebook VM listing on Azure Marketplace

  2. /img/azure/jupyter-python-notebook/marketplace.png

  3. Click on Get It Now

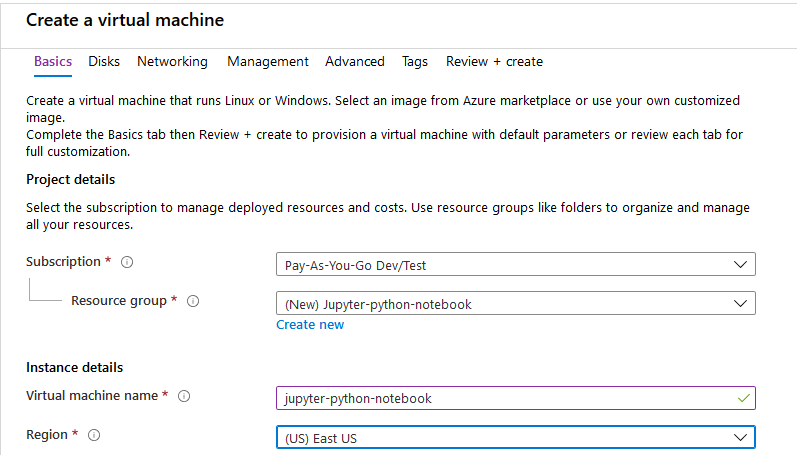

    • Select a Resource group for your virtual machine
    • Select a Region where you want to launch the VM(such as East US)

    • /img/azure/jupyter-python-notebook/basics-page-01.png

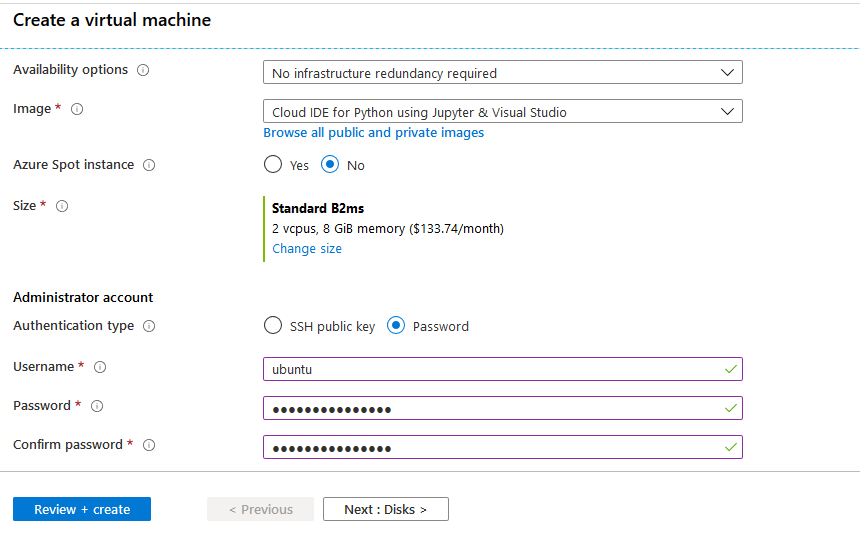

    • Optionally change the number of cores and amount of memory.
    • Select the Authentication type as Password and enter Username as ubuntu and Password for the VM
    • /img/azure/jupyter-python-notebook/basics-page-02.png

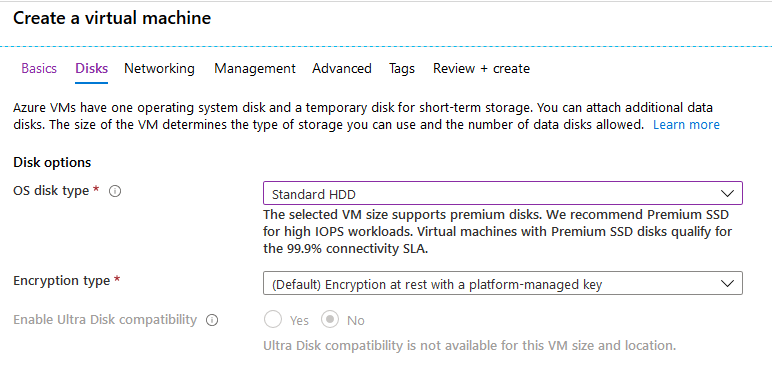

    • Optionally change the OS disk type.

    • /img/azure/jupyter-python-notebook/disk.png

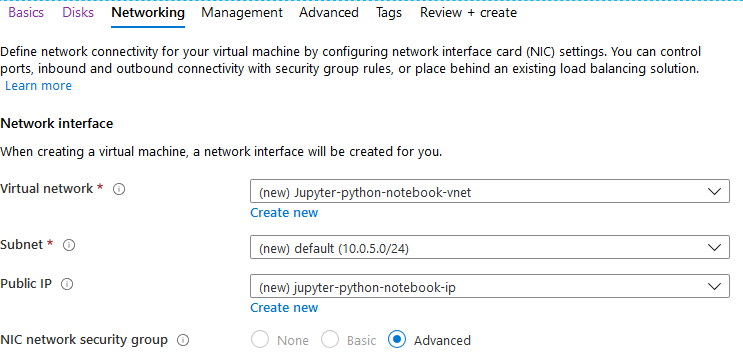

    • Optionally change the network and subnetwork names.Be sure that whichever network you specify has ports 22 (for ssh), 3389 (for RDP) and 80 (for HTTP) exposed.

    • /img/azure/jupyter-python-notebook/network.png

    • Optionally go to the Management, Advanced and Tags tabs for any advance settings you want for the VM.
    • Click on Review + create and then click on Create when you are done.
      Virtual Machine will begin deploying.

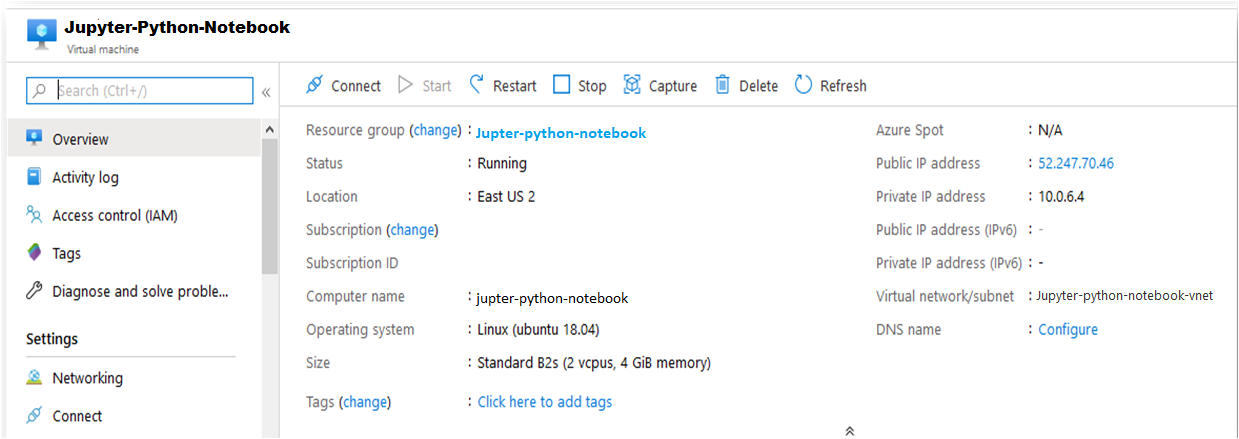

  1. A summary page displays when the virtual machine is successfully created. Click on the Go to resource link to to go to the resource page. It will open an overview page of virtual machine.

  2. /img/azure/jupyter-python-notebook/vm-overview.png

  3. In the left pane,scroll down to Support + troubleshooting and click on Reset password.

  4. /img/azure/jupyter-python-notebook/reset-password.png

  5. Enter 'Username' as 'ubuntu' and 'Password' of your choice. Click Update

  6. /img/azure/jupyter-python-notebook/update-password.png

  7. Now the password for ubuntu user is set, you can connect to the VM's desktop environment from any local windows machine using RDP protocol.

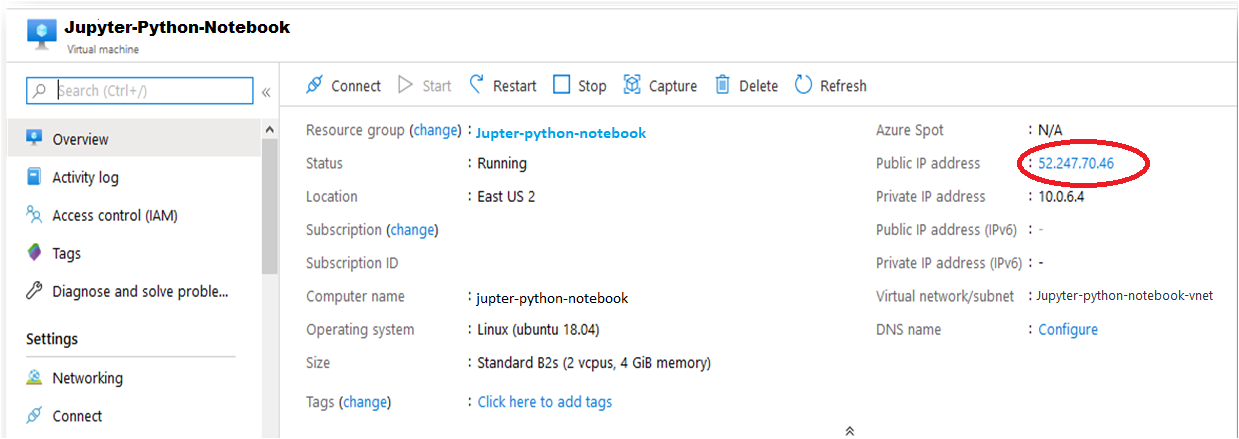

  8. To connect using RDP, first note the public IP address of the VM from VM details page as highlighted below

  9. /img/azure/jupyter-python-notebook/public-ip.png

  10. Then From you local windows machine, goto "start" menu , in the search box type and select "Remote desktop connection".
    In the "Remote Desktop connection" wizard, copy the public IP address and click connect

  11. /img/azure/desktop-linux/rdp.png

  12. This will connect you to the VM's desktop environment. Provide the username (e.g "ubuntu") and the password set in the above "Reset password" step to authenticate. Click OK

  13. /img/azure/desktop-linux/rdp-login.png

  14. Now you are connected to the out of box Jupyter Python Notebook environment.

  15. /img/azure/jupyter-python-notebook/rdp-desktop.png

  • You can use the remote desktop you connected in above step for using the VM, however, more convenient and better method is to use the Jupyter/Ipython notebook which comes with the VM .
    The Notebook is available on the same public IP you used for remote desktop and accessible via any browser. Just open the browser and type the public IP address and you will get below screen for login . Use “ubuntu” as username and the password you set in step 8 to login.
    Note : Make sure you use “http” and not “https” in the url

  • /img/gcp/gcp_pythonmachinelearning_notebook.png
