How to get GUI based Ubuntu Linux with version 20.04 (default) & 18.04 on Azure




This section describes how to launch and connect to GUI based Ubuntu Linux with version 20.04 (default) & 18.04 in Azure.

Note: Desktop Linux VM is available in 2 plans with Ubuntu(version 20.04) and Ubuntu(version 18.04).

  • If you want Desktop Linux with Ubuntu (version 20.04) , Please Select desktop linux 20.04 by Techlatest.net plan from software plan dropdown.
  • If you want Desktop Linux with Ubuntu (version 18.04) , Please Select desktop linux 18.04 by Techlatest.net plan from the software plan dropdown.


  • /img/azure/desktop-linux/select-plan.png

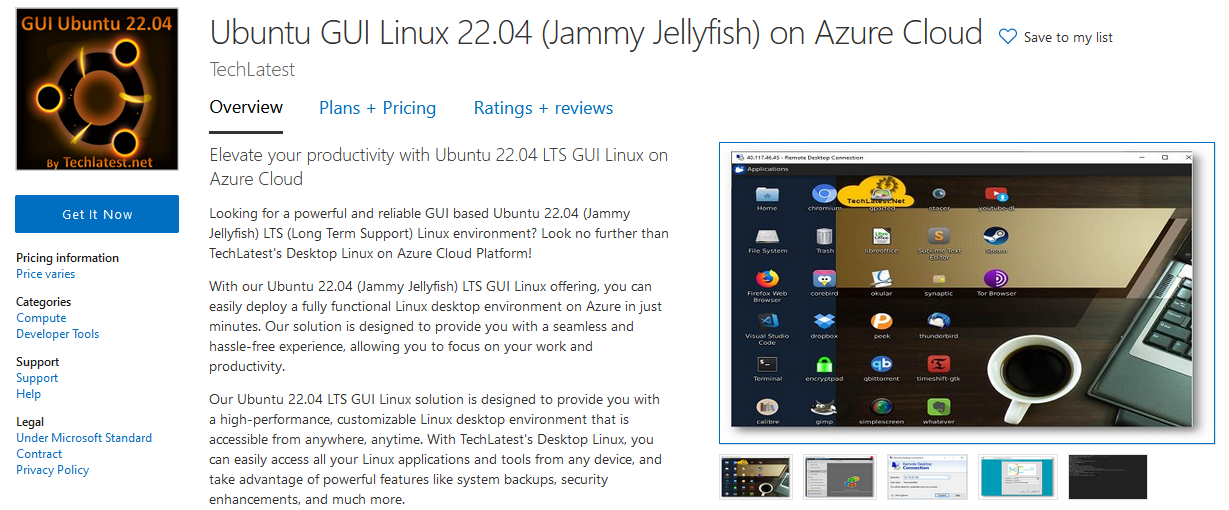

    1. Open GUI based Ubuntu Linux with version 20.04 (default) & 18.04 VM listing on Azure Marketplace

    2. /img/azure/desktop-linux/marketplace.png

    3. Click on Get It Now

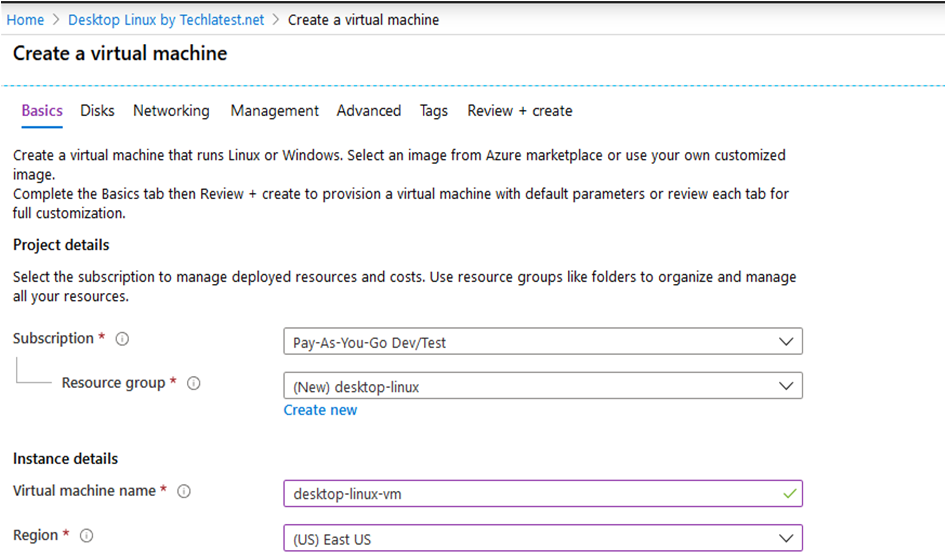

      • Select a Resource group for your virtual machine
      • Select a Region where you want to launch the VM(such as East US)

      • /img/azure/desktop-linux/basics-page-01.png


      • Optionally change the number of cores and amount of memory.

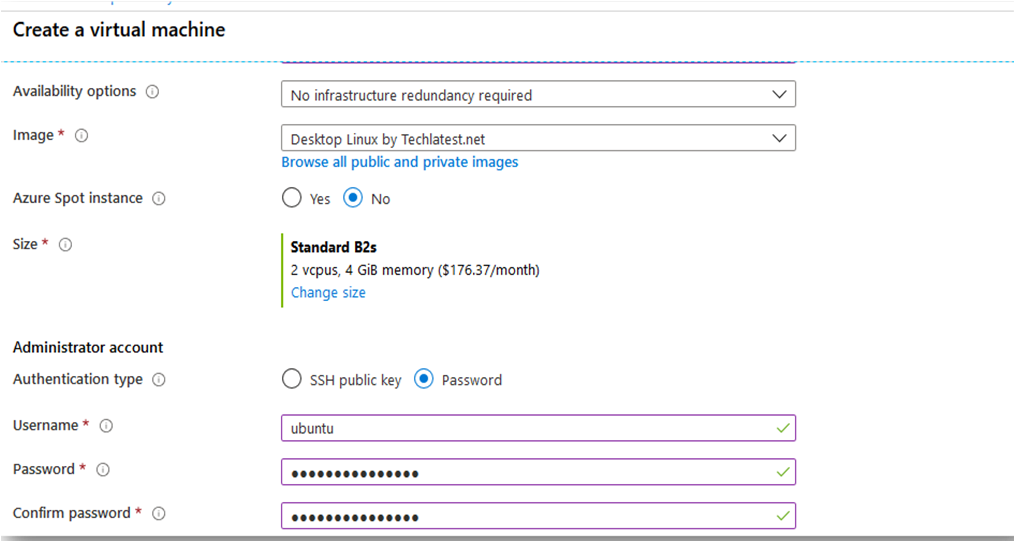

      • Select the Authentication type as Password and enter Username as ubuntu and Password of your choice.
      • /img/azure/desktop-linux/basics-page-02.png

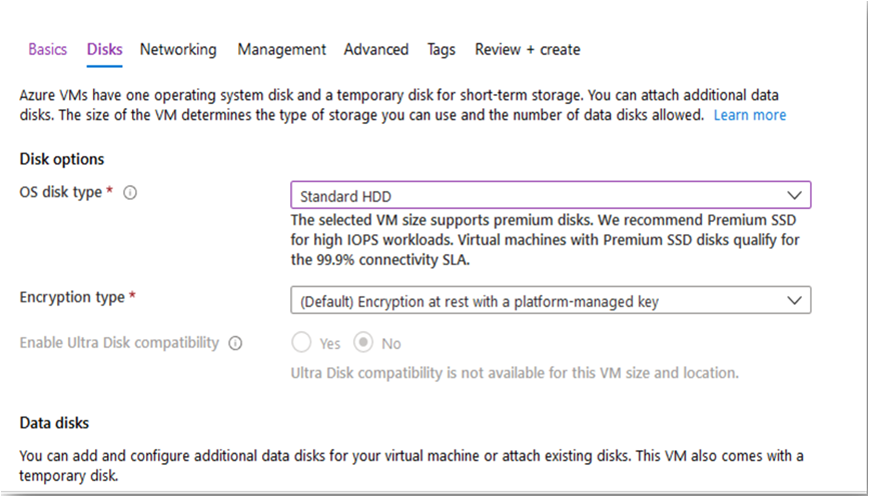

      • Optionally change the OS disk type.

      • /img/azure/desktop-linux/disk.png

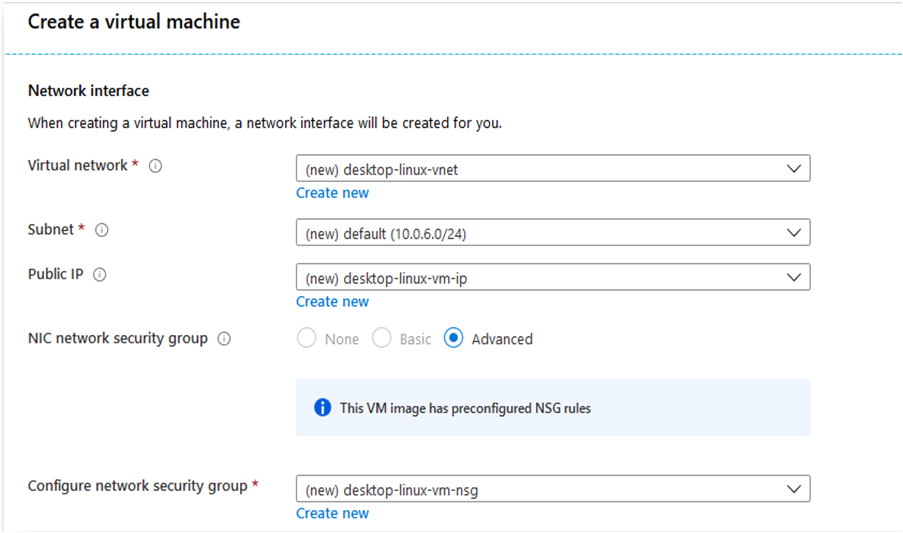

      • Optionally change the network and subnetwork names.Be sure that whichever network you specify has ports 22 (for ssh) and 3389 (for RDP) exposed.

      • /img/azure/desktop-linux/network.png


      • Optionally go to the Management, Advanced and Tags tabs for any advance settings you want for the VM.
      • Click on Review + create and then click on Create when you are done.
        Virtual Machine will begin deploying.

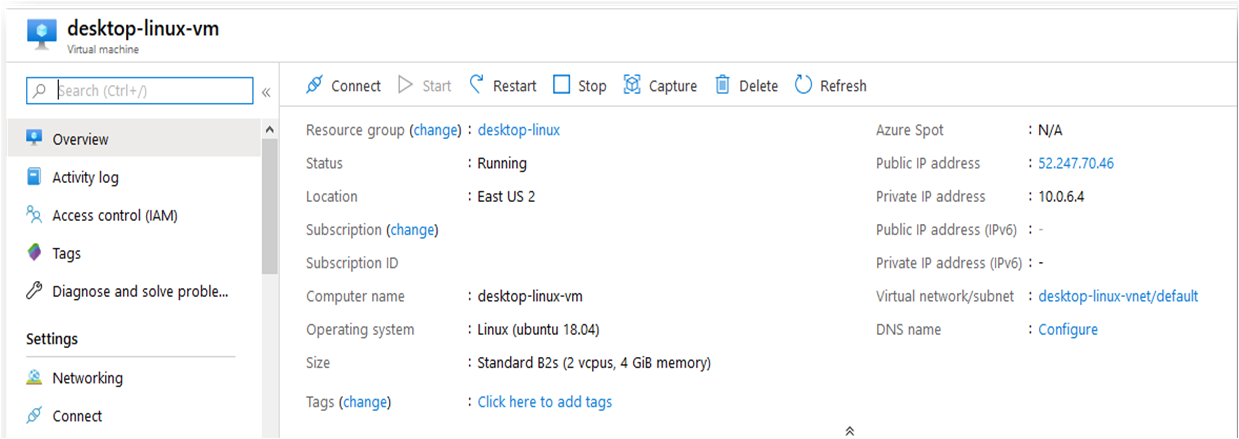

    1. A summary page displays when the virtual machine is successfully created. Click on Go to resource link to go to the resource page. It will open an overview page of virtual machine.

    2. /img/azure/desktop-linux/vm-overview.png


    3. In the left navigation pane, select Run command , select RunShellScript and enter following command to change the password of the vm .

      sudo echo ubuntu:yourpassword | chpasswd


    4. /img/azure/run_command_option-01.png

      /img/azure/run_command_change_passwd-01.png

    5. Now the password for ubuntu user is set, you can connect to the VM's desktop environment from any local windows machine using RDP protocol or local linux machine using Remmina.

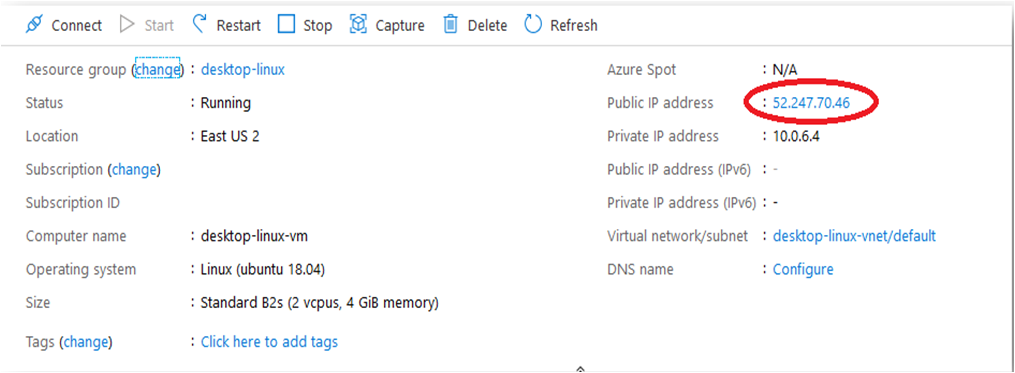

    6. To connect using RDP via Windows Machine, first note the public IP address of the VM from VM details page as highlighted below

    7. /img/azure/desktop-linux/public-ip.png

    8. Then From you local windows machine, goto "start" menu , in the search box type and select "Remote desktop connection".
      In the "Remote Desktop connection" wizard, copy the public IP address and click connect

    9. /img/azure/desktop-linux/rdp.png

    10. This will connect you to the VM's desktop environment. Provide the username (e.g "ubuntu") and the password set in the step4 to authenticate. Click OK

    11. /img/azure/desktop-linux/rdp-login.png

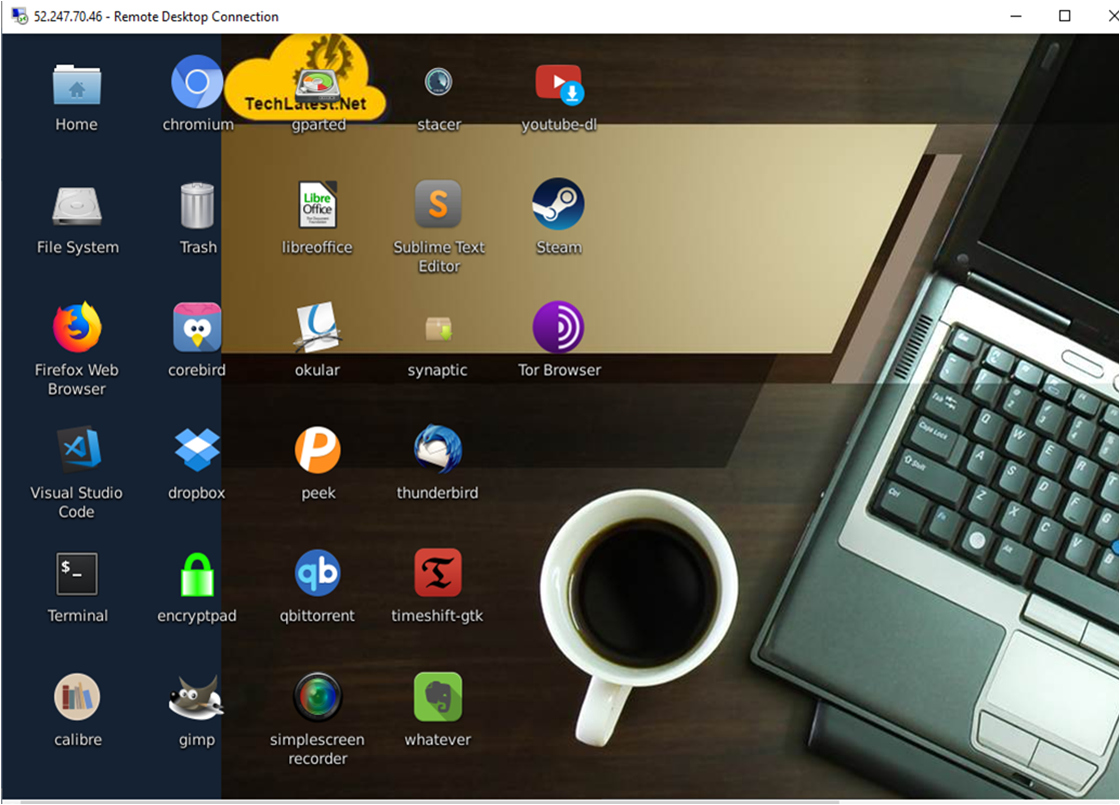

    12. Now you are connected to the out of box GUI based Ubuntu Linux with version 20.04 (default) & 18.04 environment via Windows Machine.

    13. /img/azure/desktop-linux/rdp-desktop.png

    14. To connect using RDP via Linux machine, first note the external IP of the VM from VM details page,then from your local Linux machine, goto menu , in the search box type and select "Remmina".

      Note: If you don't have Remmina installed on your Linux machine, first Install Remmina as per your linux distribution.


    15. /img/gcp/common/remmina-search.png

    16. In the "Remmina Remote Desktop Client" wizard, select the RDP option from dropdown and paste the external ip and click enter.

    17. /img/gcp/common/remmina-external-ip.png

    18. This will connect you to the VM's desktop environment. Provide "ubuntu" as the userid and the password set in above reset password step to authenticate. Click OK

    19. /img/gcp/common/remmina-rdp-login.png

    20. Now you are connected to out of box GUI based Ubuntu Linux with version 20.04 (default) & 18.04 environment via Linux machine.

    21. /img/azure/desktop-linux/rdp-desktop.png
