How to get Kali GUI Linux on AWS




This section describes how to launch and connect to Kali GUI Linux in Amazon Web Services (AWS).


  1. Open Kali GUI Linux VM listing on AWS marketplace


  2. /img/aws/desktop-linux-kali/marketplace.png

  3. Click on Continue to subscribe.
    • Login with your credentials and follow the instruction.click on Continue to configuration
    • Select a Region where you want to launch the VM(such as US East (N.Virginia))

    • /img/aws/desktop-linux-kali/region.png

    • Choose Action: You can launch it through EC2 or from Website.(Let's choose Launch from website)

    • /img/aws/desktop-linux-kali/launch.png

    • Optionally change the EC2 instance type. (This defaults to t2.medium instance type, 2 vCPUs and 4 GB RAM)

    • Optionally change the network name and subnetwork names.

      /img/aws/desktop-linux-kali/vpc.png

    • Select the Security Group. Be sure that whichever Security Group you specify have ports 22 (for ssh) and 3389 (for RDP) exposed.
    • Be sure to download the key-pair which is available by default, or you can create the new key-pair and download it.

    • /img/aws/desktop-linux-kali/SG.png

    • Click on Launch..
      Kali GUI Linux will begin deploying.
  4. A summary page displays.To see this instance on EC2 Console click on EC2 Console link.

  5. /img/aws/desktop-linux-kali/deployed.png

  6. On the EC2 Console page, instance is up and running. To connect to this instance through putty, copy the IPv4 Public IP Address

  7. /img/aws/desktop-linux-kali/public-ip.png

  8. Open putty, paste the IP address and browse your private key you downloaded while deploying the VM, by going to SSH->Auth , click on Open.

  9. /img/aws/ethereum-fullnode/putty-01.png

    /img/aws/ethereum-fullnode/putty-02.png

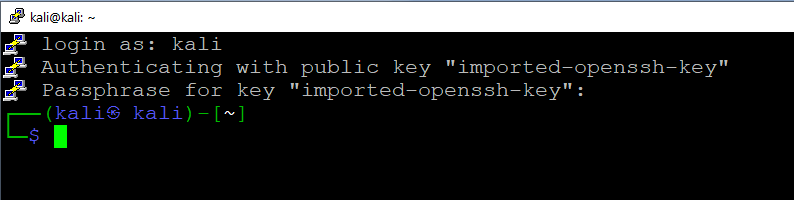

  10. login as kali. Now you are connected as kali user

  11. /img/aws/desktop-linux-kali/ssh-kali-login.png

  12. Change the password for kali user by running-
  13. sudo passwd kali

    /img/aws/desktop-linux-kali/kali-passwd.png

  14. Now passwd is set for kali user , you can connect to the VM's desktop environment from any local Windows Machine using RDP protocol or Linux Machine using Remmina.

    From your local windows machine, goto "start" menu , in the search box type and select "Remote desktop connection". In the "Remote Desktop connection" wizard, copy the public IP address and click connect

  15. /img/aws/ethereum-fullnode/rdp.png

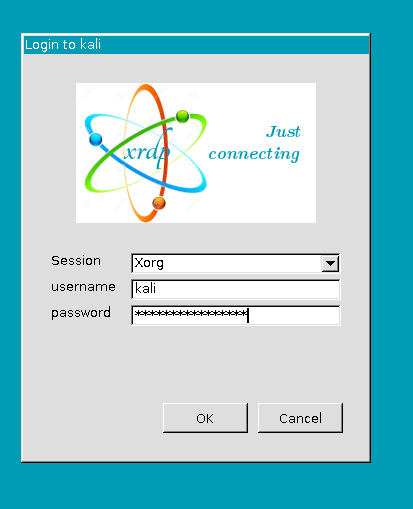

  16. This will connect you to the VM's desktop environment.Click yes on certificate warning. Provide username as kali and password set in the above step to authenticate. Click OK

  17. /img/aws/desktop-linux-kali/kali-rdp-login.png

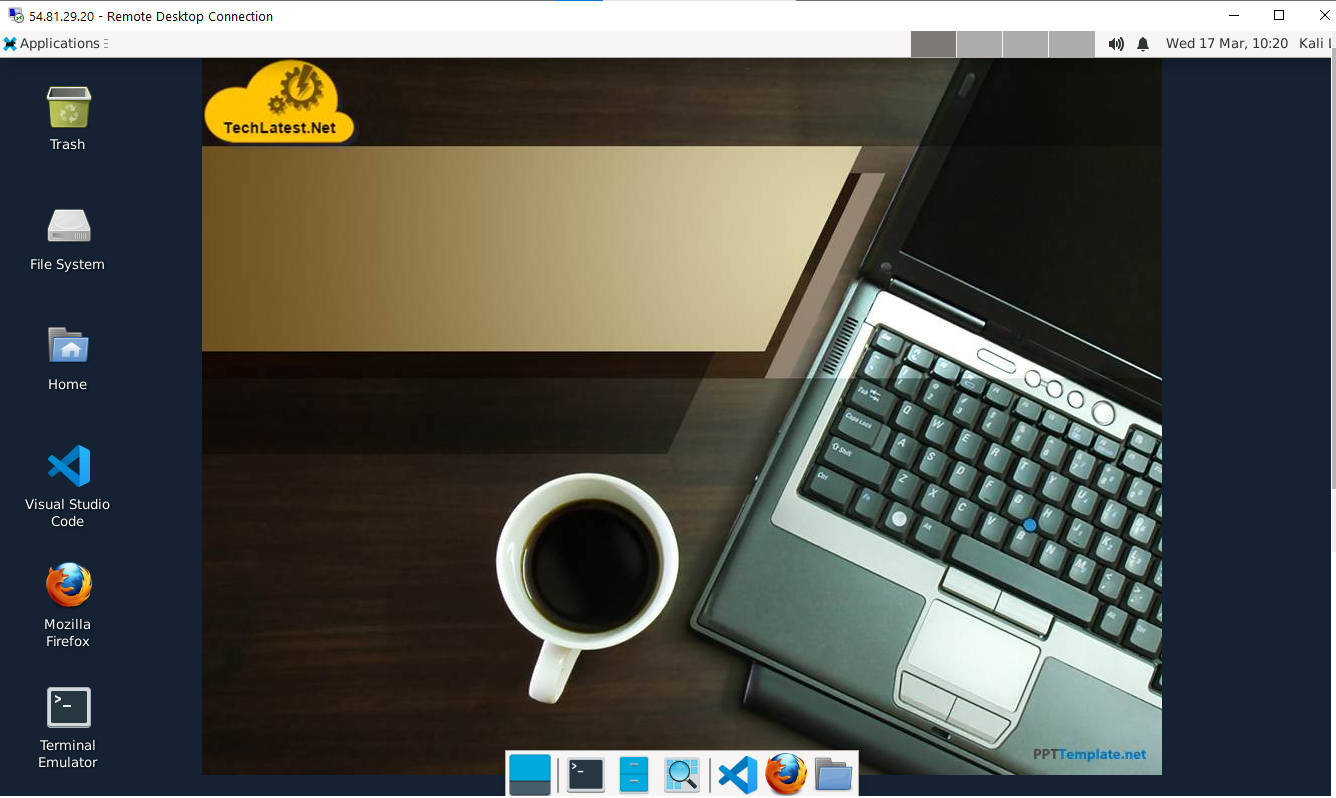

  18. Now you are connected to the out of box Kali GUI Linux environment via Windows Machine.

  19. /img/aws/desktop-linux-kali/kali-rdp-desktop.png

  20. To connect using RDP via Linux machine, first note the external IP of the VM from VM details page,then from your local Linux machine, goto menu , in the search box type and select "Remmina".

    Note: If you don't have Remmina installed on your Linux machine, first Install Remmina as per your linux distribution.


  21. /img/gcp/common/remmina-search.png

  22. In the "Remmina Remote Desktop Client" wizard, select the RDP option from dropdown and paste the external ip and click enter.

  23. /img/gcp/common/remmina-external-ip.png

  24. This will connect you to the VM's desktop environment.Accept the certificate warning and provide username as kali and password set in above step to authenticate. Click OK

  25. /img/aws/desktop-linux-kali/remmina-rdp-login-kali.png


  26. Now you are connected to out of box Kali GUI Linux environment via Linux machine.

  27. /img/aws/desktop-linux-kali/kali-rdp-desktop.png

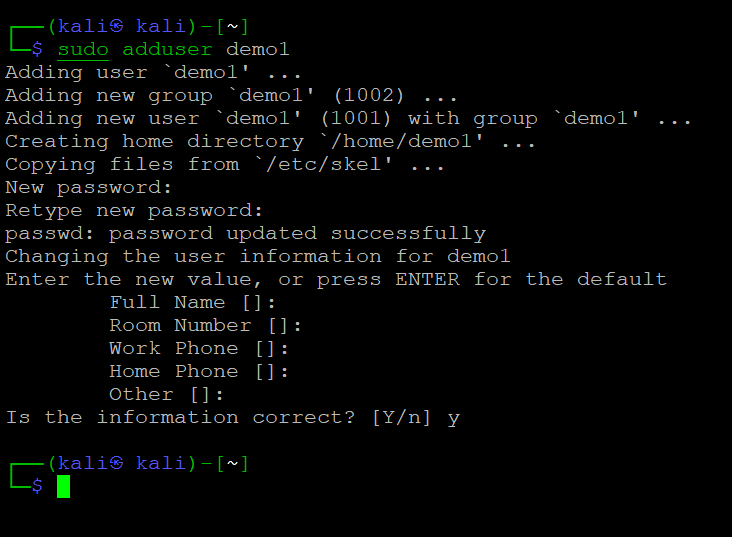

  28. Run below command to add new user and follow the instructions-

  29. sudo adduser username

    /img/aws/desktop-linux-kali/adduser.png

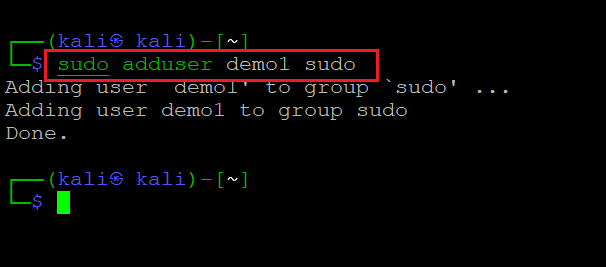

  30. Now add newly created user to the sudo group to give the sudo access by running below command-
  31. sudo adduser username sudo

    /img/aws/desktop-linux-kali/sudo-group.png

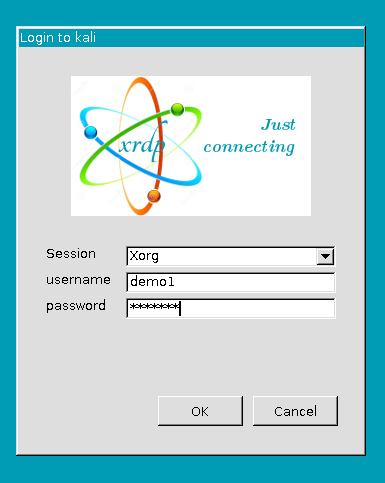

  32. Now new user setup is completed. You can use this user to connect to the Kali GUI Dekstop environment.
  33. /img/aws/desktop-linux-kali/demouser-rdp-login.png

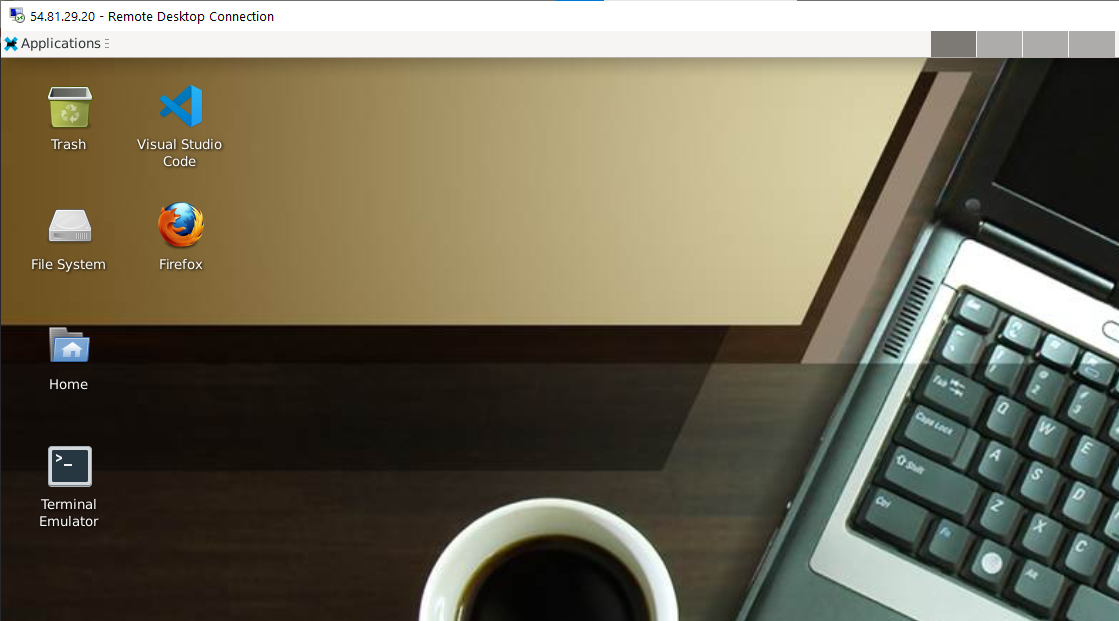

  34. Now you are connected to out of box Kali GUI Dekstop environment with new user.
  35. /img/aws/desktop-linux-kali/rdp-dekstop-newuser.png
