How to get Debian GUI Linux on Azure

This section describes how to launch and connect to Debian GUI Linux in Azure.

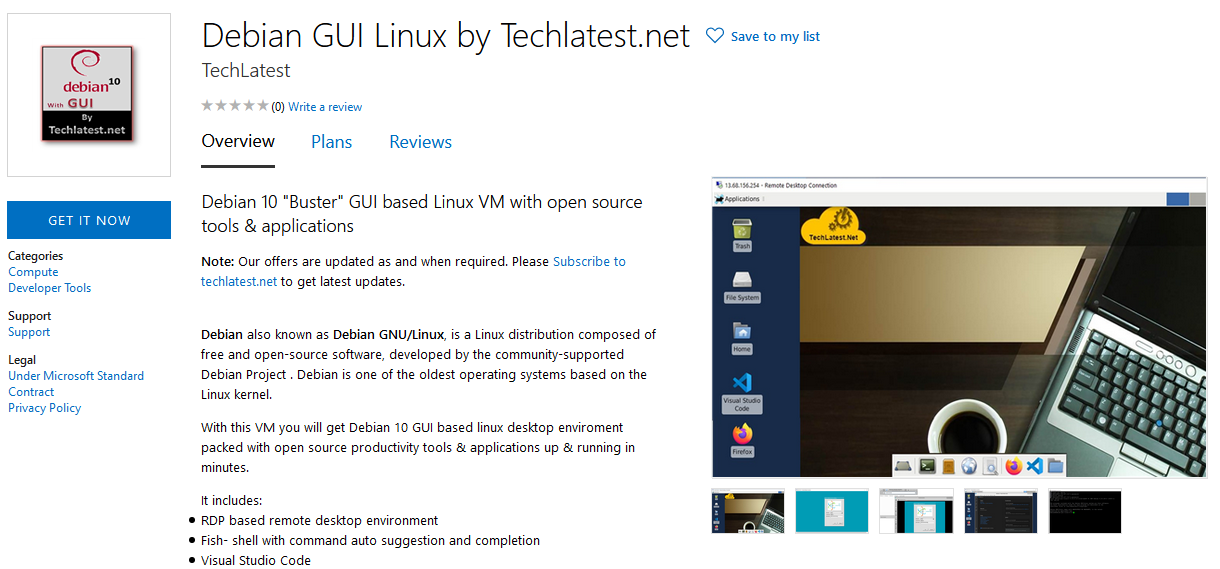

  1. Open Debian GUI Linux VM listing on Azure Marketplace

/img/azure/debian-gui-linux/marketplace.png

  1. Click on Get It Now

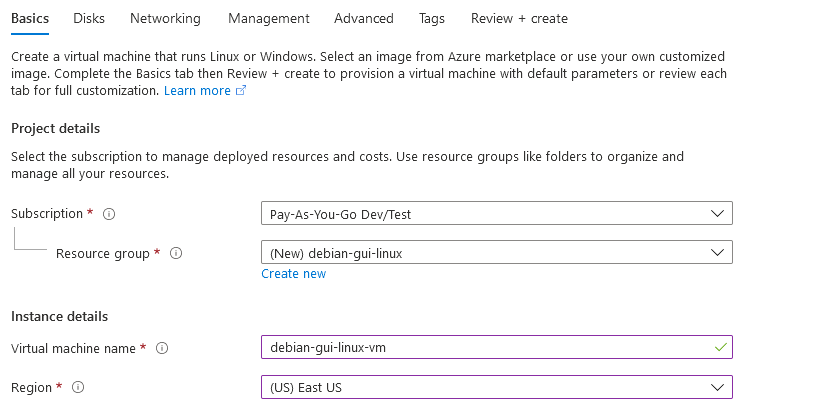

  • Select a Resource group for your virtual machine
  • Select a Region where you want to launch the VM(such as East US)

/img/azure/debian-gui-linux/basics-page-01.png

  • Optionally change the number of cores and amount of memory.

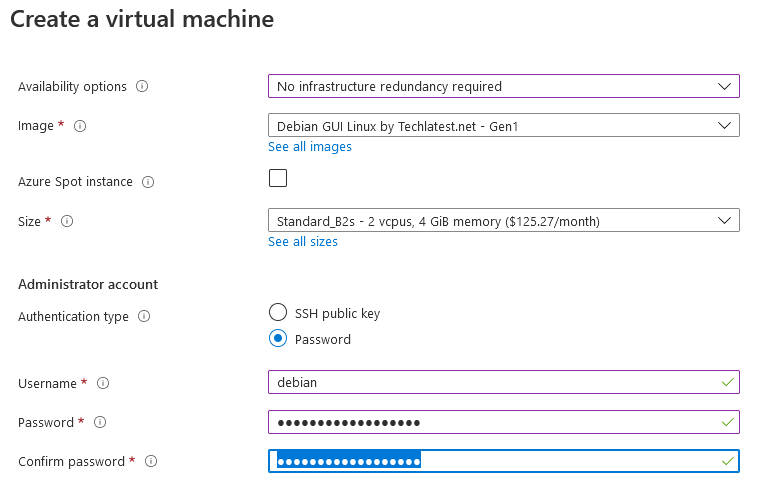

Select the Authentication type as Password and enter Username as debian and Password of your choice. /img/azure/debian-gui-linux/basics-page-02.png

  • Optionally change the OS disk type.

/img/azure/debian-gui-linux/disk.png

  • Optionally change the network and subnetwork names.Be sure that whichever network you specify has “ports 22 (for ssh) and 3389 (for RDP)” exposed.

/img/azure/debian-gui-linux/network.png

  • Optionally go to the Management, Advanced and Tags tabs for any advance settings you want for the VM.
  • Click on Review + create and then click on Create when you are done.
    Virtual Machine will begin deploying.
  1. A summary page displays when the virtual machine is successfully created. Click on Go to resource link to go to the resource page. It will open an overview page of virtual machine.

/img/azure/debian-gui-linux/vm-overview.png

  1. In the left navigation pane, select Run command, select RunShellScript and enter following command to change the password of the vm .
sudo echo debian:yourpassword | chpasswd

/img/azure/run_command_option-01.png

/img/azure/debian-gui-linux/run_command_change_passwd-01.png

  1. Now the password for debian user is set, you can connect to the VM’s desktop environment from any local windows machine using RDP protocol or local linux machine using Remmina.

  2. To connect using RDP via Windows Machine, first note the public IP address of the VM from VM details page as highlighted below

/img/azure/debian-gui-linux/public-ip.png

  1. Then From you local windows machine, goto “start” menu, in the search box type and select “Remote desktop connection”.
    In the “Remote Desktop connection” wizard, copy the public IP address and click connect

/img/azure/debian-gui-linux/rdp.png

  1. This will connect you to the VM’s desktop environment. Provide the username (e.g “debian”) and the password set in the step4 to authenticate. Click OK

/img/azure/debian-gui-linux/rdp-login.png

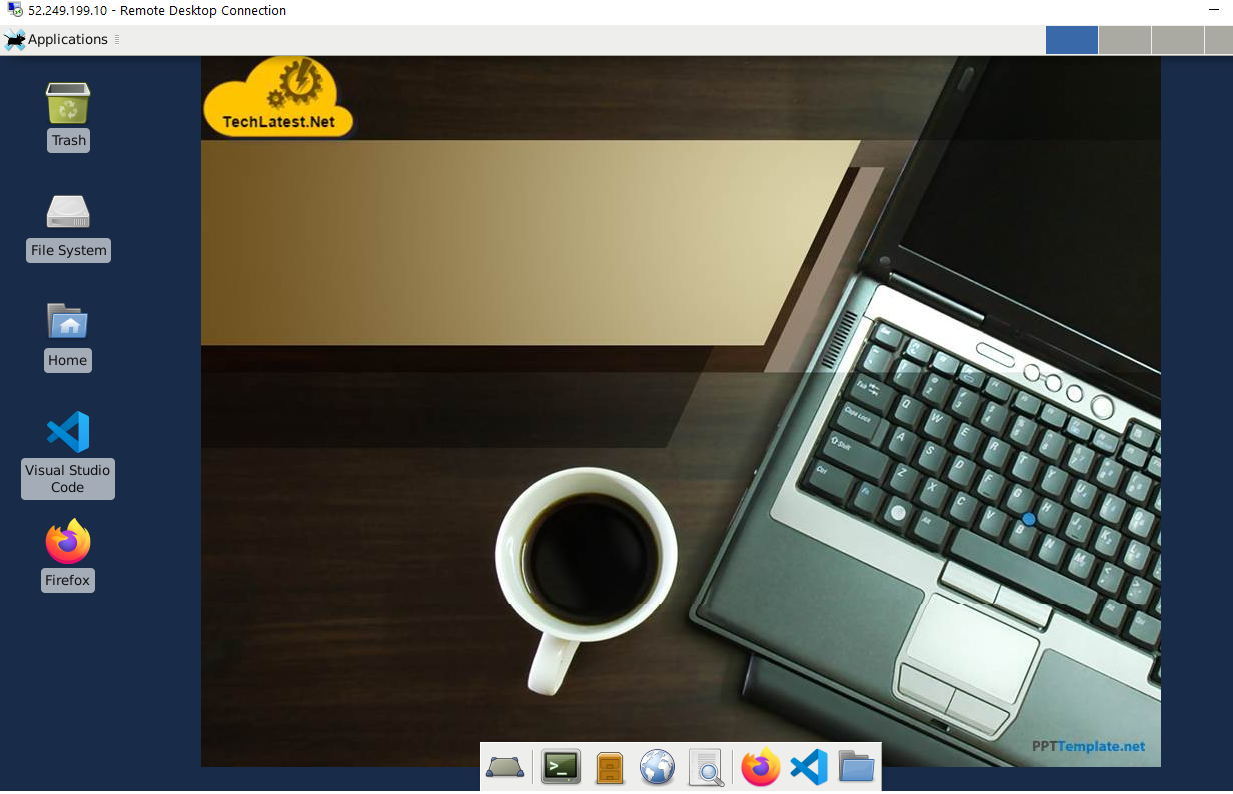

  1. Now you are connected to the out of box Debian GUI Linx environment via Windows Machine.

/img/azure/debian-gui-linux/rdp-desktop.png

  1. To connect using RDP via Linux machine, first note the external IP of the VM from VM details page,then from your local Linux machine, goto menu, in the search box type and select “Remmina”.

Note: If you don’t have Remmina installed on your Linux machine, firstInstall Remmina as per your linux distribution.

/img/gcp/common/remmina-search.png 11. In the “Remmina Remote Desktop Client” wizard, select the RDP option from dropdown and paste the external ip and click enter.

/img/gcp/common/remmina-external-ip.png 12. This will connect you to the VM’s desktop environment. Provide “debian” as the userid and the password set in above reset password step to authenticate. Click OK

/img/azure/debian-gui-linux/remmina-login.png 13. Now you are connected to out of box Debian GUI Linux environment via Linux machine.

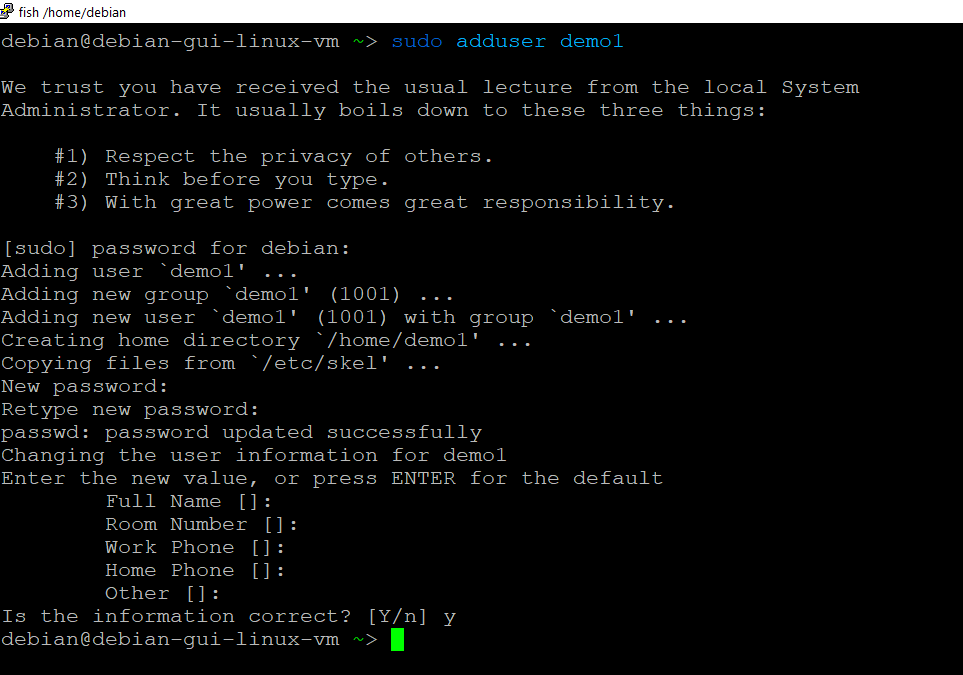

/img/azure/debian-gui-linux/rdp-desktop.png 14. Follow below steps to add new user 15. Open terminal and type below command and follow the instruction -

sudo adduser username

/img/azure/debian-gui-linux/adduser.png

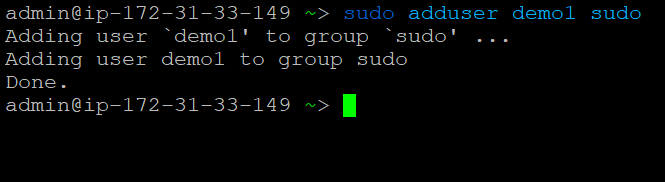

  1. Now add newly created user to the sudo group by running below command-
sudo adduser username sudo

/img/aws/debian-gui-linux/sudo-group.png

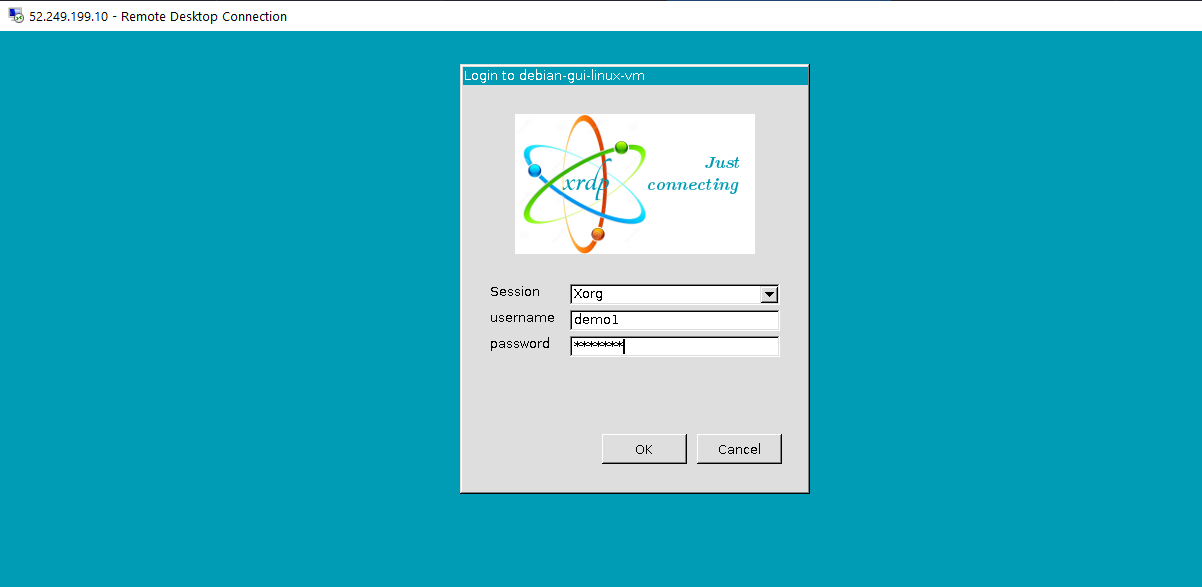

  1. Once new user setup is completed, Open Remote Desktop and login via new user and select “use default config” panel option. /img/azure/debian-gui-linux/rdp-login-newuser.png

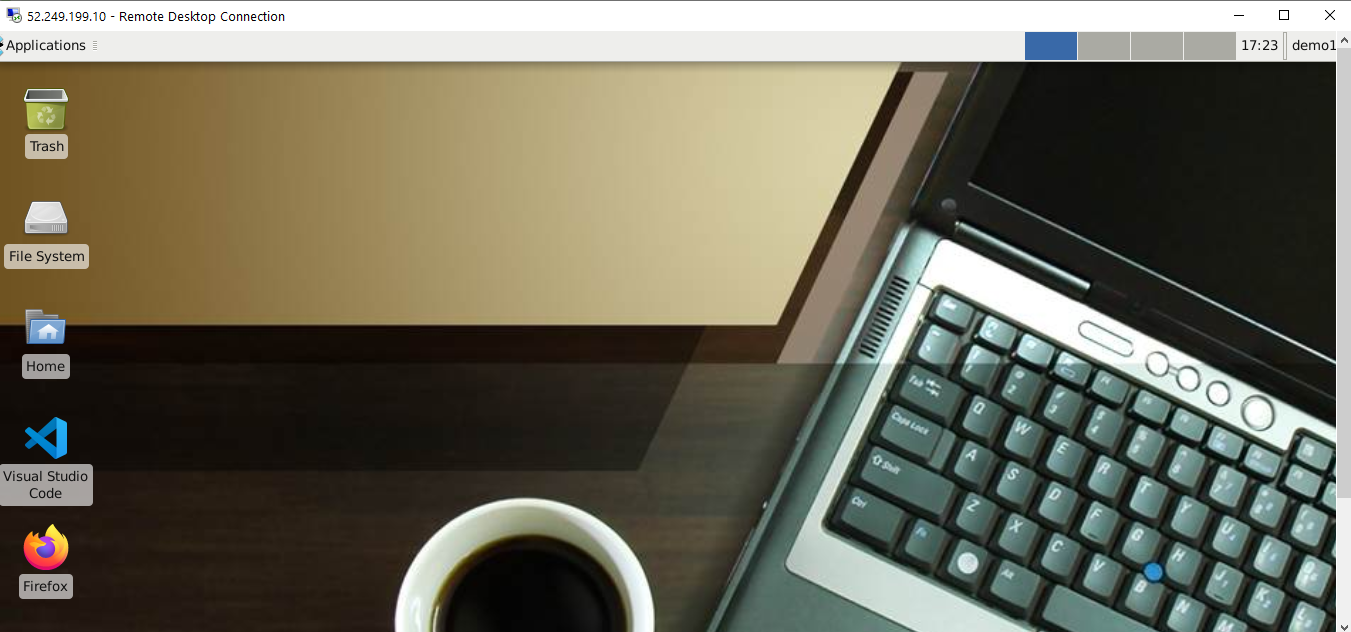

  2. Now you are connected to out of box Debian GUI Linux environment with new user /img/azure/debian-gui-linux/rdp-desktop-newuser.png
