How to get Bitcoin FullNode kit on AZURE




This section describes how to launch and connect to Bitcoin FullNode kit in Azure.


  1. Open Bitcoin FullNode Listing on AZURE Marketplace.
  2. Click on Get it now button and follow the login step.It will take you to azure portal.
  3. /img/azure/bitcoin_offering.png
  4. Click on Create.
  • Select a Resource group for your virtual machine
  • Select a Region where you want to launch the VM(such as East US)
  • Optionally change the number of cores and amount of memory. (This defaults to 2 vCPUs and 8 GB ram.)
  • Select the Authentication type as Password and enter Username and Password for the VM
  • Optionally change the OS disk type.
  • Optionally change the network name and subnetwork names.You can go with the defaults settings.
  • Optionally go to the Management, Advanced and Tags tabs for any advance settings you want for the VM.
  • Click on Review + create and then click on Create when you are done. Bitcoin FullNode kit will begin deploying.
  • /img/azure/bitcoin_vm_created.png

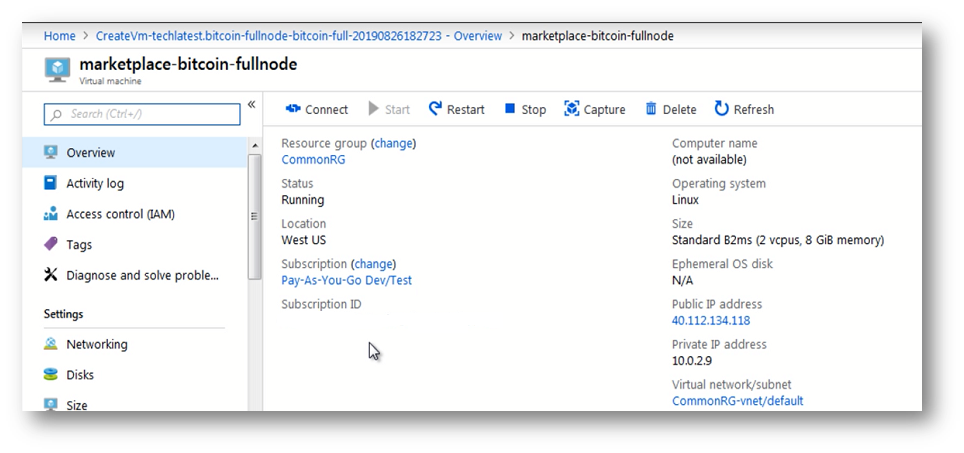

  1. A summary page displays when the virtual machine is successfully created. Click on the Go to resource link to to go to the resource page.
  2. /img/azure/bitcoin_vm_detail.png
    1. In the left navigation pane, select Run command , select RunShellScript and enter following command to change the password of the vm .

      sudo echo ubuntu:yourpassword | chpasswd

    2. /img/azure/run_command_option-01.png

      /img/azure/run_command_change_passwd-01.png

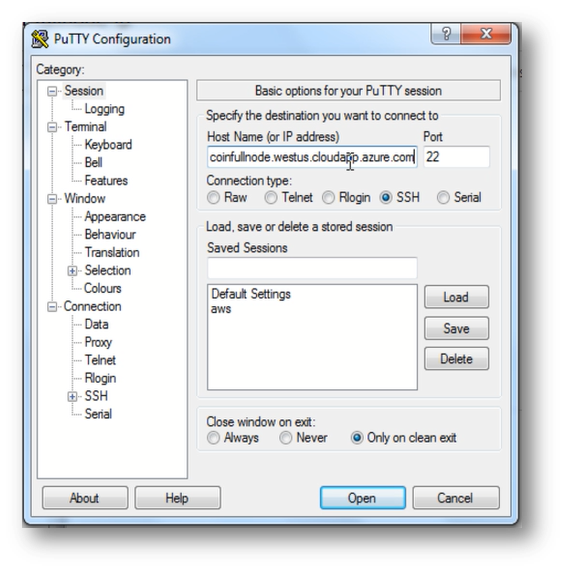

  3. To SSH the VM, use the IP address or DNS address in the putty.
  4. /img/azure/bitcoin_putty.png

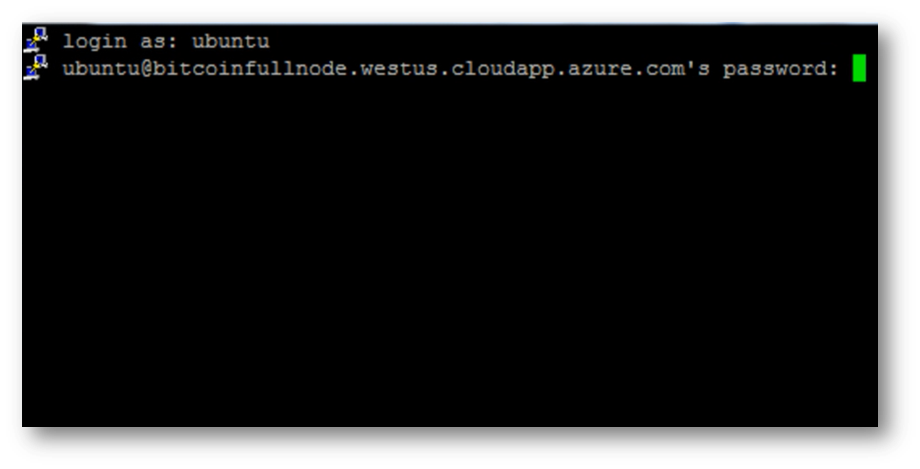

  5. Provide the password for ubuntu user, you created in step 5.
  6. /img/azure/bitcoin_ssh_login.png

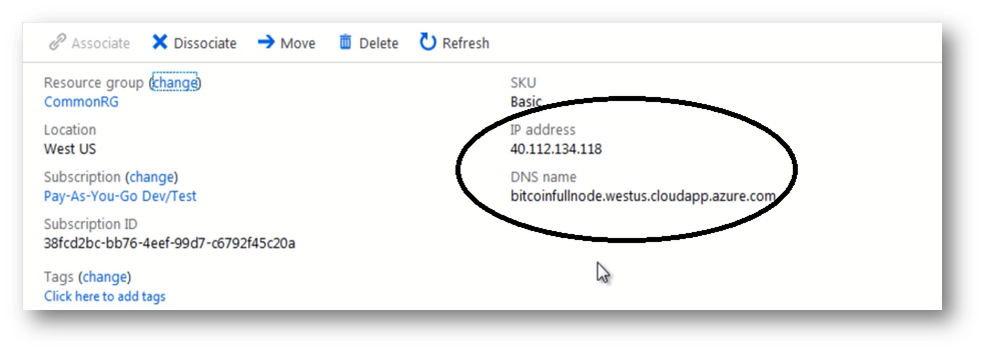

  7. To connect using RDP via Windows Machine, first note the public IP address or DNS address of the VM from VM details page as highlighted below
  8. /img/azure/bitcoin_ip_address.png
  9. Then From you local windows machine, goto "start" menu , in the search box type and select "Remote desktop connection"

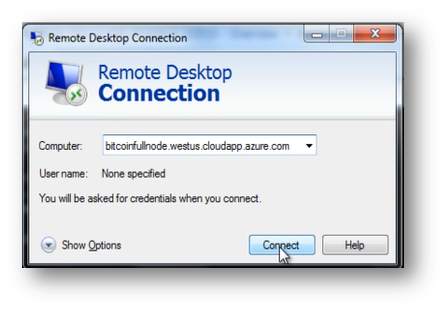

  10. In the "Remote Desktop connection" wizard, copy the public IP address or DNS address and click connect

  11. /img/azure/bitcoin_rdp.png

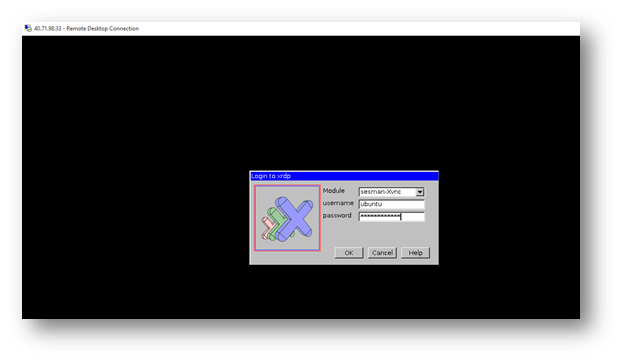

  12. This will connect you to the VM's desktop environment.Provide username and password.Click OK.

  13. /img/azure/bitcoin_rdp_login.png
  14. Now you are connected to the out of box Bitcoin FullNode environment via Windows Machine.

  15. /img/azure/bitcoin_rdp_desktop.png
  16. To connect using RDP via Linux machine, first note the external IP of the VM from VM details page,then from your local Linux machine, goto menu , in the search box type and select "Remmina".

    Note: If you don't have Remmina installed on your Linux machine, first Install Remmina as per your linux distribution.

  17. /img/gcp/common/remmina-search.png

  18. In the "Remmina Remote Desktop Client" wizard, select the RDP option from dropdown and paste the external ip and click enter.

  19. /img/gcp/common/remmina-external-ip.png

  20. This will connect you to the VM's desktop environment. Provide "ubuntu" as the userid and the password set in step 5 to authenticate. Click OK

  21. /img/gcp/common/remmina-rdp-login.png

  22. Now you are connected to the out of box Bitcoin Fullnode Desktop environment via Linux machine.

  23. /img/azure/bitcoin_rdp_desktop.png
  24. Once VM is provisioned, you can start Bitcoin node either via command line or using the Bitcoin QT GUI wallet

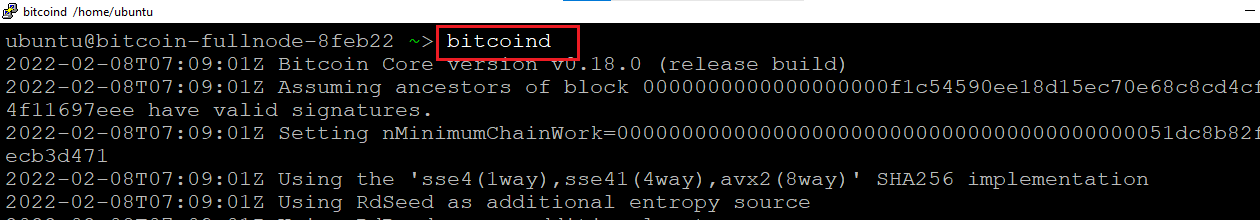

  25. a. Start Bitcoin sync process using command line :
    Go to terminal and execute below command as ubuntu user to run Bitcoin daemon in background -

       bitcoind

    /img/gcp/bitcoin-bitcoind-command.png

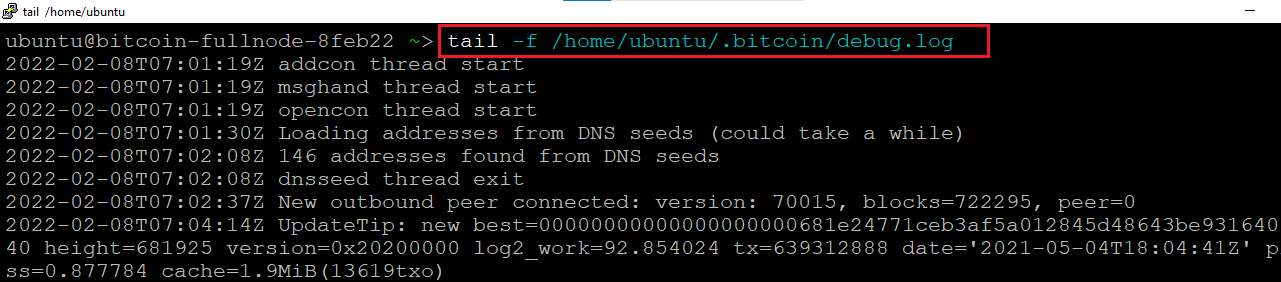

    To verify the command execution or to monitor the daemon, you can tail the bitcoin debug log

    tail -f /home/bitcoin/debug.log

    /img/gcp/bitcoin-tail-command.png

    b. Start Bitcoin sync process using GUI:
    You can also run the sync process by running the Bitcoin-QT GUI wallet. For this, connect to the VM using RDP as described in steps 7 to 11 .Once connected, click on bitcoin-qt to start the sync process. A window may popup asking to mark the application executable . Click on "Mark Executable" button to avoid seeing this window in future.

    /img/gcp/bitcoin-mark-executable.png

    /img/gcp/bitcoin-GUI.png

  26. How to stop bitcoind daemon :
  27. To manually stop bitcoind, run below command.

    "bitcoin-cli stop"

    /img/gcp/bitcoin-cli-stop-command.png

  28. To know how to use the Bitcoin Full Node kit, please refer to the video tutorial series available on Bitcoin overview page.
